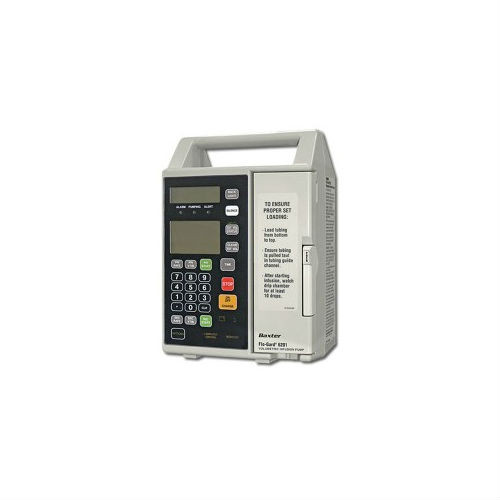

Refurbished Baxter 6201 Infusion Pump

Operator's Manual PDF Download

The Baxter FLO-GARD 6201 Single-Channel Volumetric Infusion Pump can deliver a wide variety of fluids over a broad range of infusion rates.
The FLO-GARD 6201 Volumetric Infusion Pump and the FLO-GARD 6301 Dual-Channel Volumetric Infusion Pump are industry standard in standard set infusion pump technology.

Enhanced Safety

• Flow Check Occlusion Alarm offers an in-line resistance display of incremental back pressure.
• Slide Clamp option offers an additional step to protect against inadvertent gravity free flow.
• Flow Rate Calculation is automatic after volume and time are selected.
• Front Panel Lock-out protects against tampering.

Greater Convenience and Versatility

• Programmed Delivery Profile allows up to 10 steps, individualizing control of infusion ramping and tapering.
• Incremental Flow Rate can deliver 1-99.9 mL/hr in increments of 0.1 mL/hr.
• Automatic Restart once occlusion clears.
• Automatic Piggybacking of secondary medications.

Cost-Efficiency

• Uses Baxter standard IV administration sets that eliminates the need for costly disposable sets and reduces the potential for waste.

Specifications:

• Dimensions: 20 cm W x 13 cm D x 29 cm H (8 inches x 5.1 inches by 11.4 inches)
• Weight: 5.3 kg (11.6 lbs)
• Battery: 12 volt, 2.0 ampere, sealed lead acid
• Battery Recharger: 80% charged within 8 hours
• Battery Life: 6 hours at 1,400 mL/hr
• Power cord: Biomed replaceable 2.9 m (9 feet)
• Leakage Current: Less than 50 µA
• Fuse: ½ ampere, 250 volt, slow-blow
• Communications Port: RS232 serial port
• Power Requirements: 115 VAC, 60 Hz, 30W
