AII-2000 M Oxygen Analyzer

Write a Review

Analytical Industries, Inc

AII-2000 M Oxygen Analyzer

Rating Required

Name Required

Email Required

Review Subject Required

Comments Required

$495.00

Brand

Analytical Industries, Inc

SKU:

AII2000M

Condition:

New

Availability:

Please note that the current turnaround time is approximately two (2) weeks due or sooner to manufacturer processing and shipping schedules.

Weight:

2.00 KGS

Shipping:

Calculated at Checkout

Description
Warranty Information

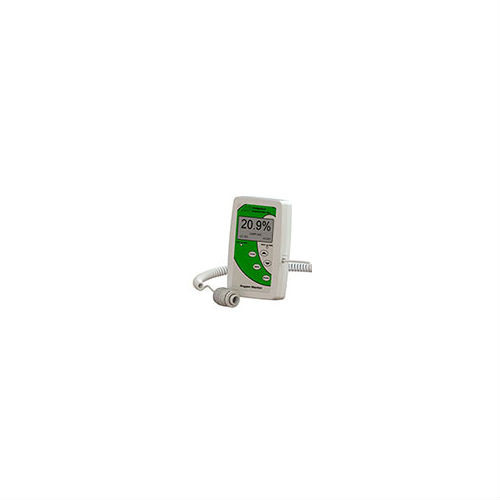

AII-2000M O2 % Analyzer - NEW

AII-2000M Portable oxygen monitor measures percent oxygen from 0.0% to 100%. Features an advanced galvanic oxygen sensor, a longer operating life, a true 18 month warranty in normal use, proven electronics with touch pad controls, an external sensor with a coiled cable that extends to 6 feet, and two user selectable alarm set points with a 15% lower limit.

2 adjustable oxygen alarms
An advanced galvanic oxygen sensor
32 month sensor operating life; no maintenance required
13,000 hours of battery use
Wide variety of optional accessories
Cost effective choice for checking O2 levels in lab experiments, air tanks

(AII-2000M oxygen analyzer measures O2 concentrations from 0.0% to 100%. Features an advanced galvanic oxygen sensor, a longer operating life, a true 18 month warranty in normal use, proven electronics with touch pad controls, an external sensor with a coiled cable that extends to 6 feet, and two user selectable alarm set points with a 15% lower limit.)

Accuracy:	< 2% of FS range under constant conditions	Analysis:	0-100% oxygen
Application:	Anesthesia, Respiratory Therapy – Ventilators,, Respirators, Neonatal & Pediatric Incubators & Hoods, Oxygen Therapy – Intensive Care, Emergency Transport	Approvals:	ISO 9001:2000, MDD 93/42/Annex II, ISO 13485:2003
Area Classification:	General purpose	Alarms:	User adjustable HI alarm 16-100% and LO alarm 15-99%; 120 second alarm silence for calibration purposes HI alarm defeat for flushing patients with 100% O2
Calibration:	Air or certified 100% O2 every 8 hours; time – 90 seconds	Compensation:	Temperature compensated
Connections:	1×16 mm thread or push-in flow diverter with o-ring seal	Controls:	Soft touch keypad for ON/OFF and menu function
Dimensions:	3.6 x 5.9 x 1.6”; weight 10 oz. (280 grams)	Display:	3-1/2 digit backlit LCD 2.75 x 1.375; resolution 0.1% O2
Flow Sensitivity:	None between 0.2 to 10 liters per minute
LED Indicators:	None	Humidity:	Non-condensing 0-95% RH
Linearity:	+1% under constant conditions	Pressure:	Inlet – ambient; vent – atmospheric
Power:	2 AA Alkaline batteries; 1,200 hours continuous use	Response Time:	90% of final FS reading in 9 seconds
Sensitivity:	< 0.5% of FS range	Sensor:	AII-11-60
Sensor Life:	60 months in air at 25ºC and 1 atmosphere	Signal Output:	None
Storage Temp.:	-20º to 60ºC (-4ºF to 140ºF) on intermittent basis	Temp. Range:	5º to 45ºC (41ºF to 113ºF)
Warm-up Time:	None	Warranty:	24 months analyzer; 18 months sensor (any application)
