Micro Hardness Tester - Manual Software (900-390A)

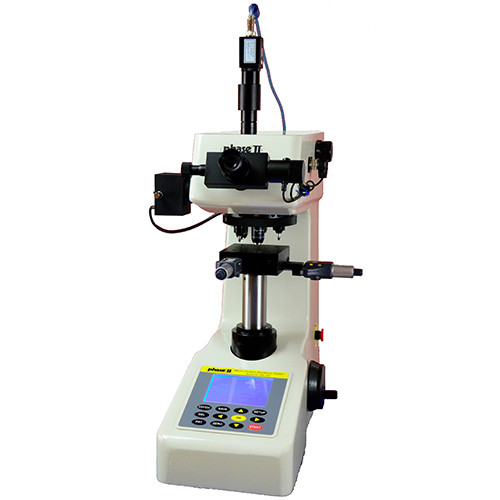

This Micro Vickers hardness tester from Phase II is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments.

Technical Features:

• Testing Range: 1 HV ~ 2967 HV
• Test Load Range: 10 g - 1000 g
• Max Specimen Height: 70 mm
• Microscope Magnification: 100×，400×
• Dwell Time: 5-60 s
• XY Table Dimensions: 100 × 100 mm
• Light source/Power Supply:110/220V,60/50Hz/Cold Light Source
• Weight: 78 lbs (35 kg)
• Package Dimensions:425×245×490mm
• Manual Measurement Software

Main Accessories for Phase II Vickers Hardness Tester Model 900-390:

• Base Machine
• X-Y Stage w/Micrometer
• Mini Thin Part Holding Fixture
• Mini Drill Chuck Fixture
• Mini Vise fixture
• Video Cam w/Adapter
• Measurement Software
• USB Cable

5 year warranty and free lifetime technical support.
